OWC 11-port Thunderbolt Dock

Massively expand your connectivity: Add More Thunderbolt™ Ports + Works with USB-C Machines Too!

OWC 11-port Thunderbolt Dock
OWC 11-port Thunderbolt Dock
OWC 11-port Thunderbolt Dock
OWC 11-port Thunderbolt Dock
OWC 11-port Thunderbolt Dock
OWC 11-port Thunderbolt Dock

OWC 11-port Thunderbolt Dock

Only

$409.99
Learn More

Create

3

Independent Daisy Chains

Create

11

Ports

Drives, Accessories + More

See More

4

k

-

8

k

Displays

Up To

96

Watts

Charging Power

The Past, Present, and Future is Yours

Three Thunderbolt ports and four USB ports empower you to connect to past, present and future devices. Up to two 4K displays or a 5K/6K/8K display, high-performance storage including NVMe SSDs, A/V mixers, phones, tablets, even desktop accessories like a keyboard or mouse. With the OWC Thunderbolt Dock, an entire world of USB and Thunderbolt accessories is ready for you to connect and expand your capabilities.

The Connect-It-All Solution

The latest Thunderbolt interface uses a universal USB-C connector to transfer data, output video, and charge devices through the same cable. The OWC Thunderbolt Dock’s Thunderbolt ports use that same USB-C connector to create a multi-connectivity solution for millions of existing and future Thunderbolt and USB-C computers and devices. Plus, the ports are fully USB4 future compatible.

Connectivity and Convenience

Massively expand the Thunderbolt functionality of your Apple silicon M1 or M2 Mac, any Apple 'Intel' Mac with Thunderbolt 3, or any Thunderbolt 4 PC.1 You can also use the OWC Thunderbolt Dock with non-Thunderbolt USB-C machines like Chromebooks and iPads too. Gain convenient access to portable gear, headphones, and SD cards. Add your favorite Thunderbolt and USB devices, Gigabit Ethernet, and an SD card reader to your workflow... all while keeping your space free of cable clutter.

Plug It All In

Your devices will deliver the same compatibility as when they're plugged directly into your computer.

Reinvent the Chain

Create multiple independent “tree branches” and connect multiple bus-powered devices.

Powerful

96W of power to charge your laptop + power delivery to your connected devices.

More Ports = More Devices

Connect more storage, up to two 4K displays or one 5K/6K/8K display, headphones and mics, accessories... you name it, you can use it.

Thunderbolt Certified

Built to be OWC reliable, compatible with Mac and Windows.

Reliable Streaming + Sharing

Great for IP-based workflows and secured network access.

Speedy Content Transfers

Great for IP-based workflows and secured network access.

Adjustable Led

Customize the illumination for your work setting.

Securable

Features both a Kensington Security Slot and Nano Security Slot for anti-theft cabling.

Cable Included

0.8M Thunderbolt cable. It’s in the box.

Reimagining the Daisy Chain

Daisy chains are perfect for connecting a lot of devices to a single port, but remove any device other than the last one and you're left with the hassle of disconnecting and reconnecting devices. The OWC Thunderbolt Dock lets you create three separate “tree branch” device chains, so you can remove devices from one chain without affecting or disconnecting the others. You can even add three Thunderbolt bus-powered devices.

Plug In Multiple Bus-Powered Thunderbolt Drives

In the past, daisy chaining external Thunderbolt storage required you to place it close to the front of the chain to get fast and reliable performance. That wasn’t possible with bus-powered drives. They had to be placed last in the Thunderbolt chain as the chain was limited to just one bus-powered device. Now, you can connect multiple portable Thunderbolt drives and SSDs directly to the OWC Thunderbolt Dock to experience the fastest speed your storage device can deliver!

SD Card Reader

Getting content to your computer is a necessity now that photo and video creation have become a part of daily life. Don’t waste time struggling with data transport. Transfer your creative files quickly, easily, and conveniently with the OWC Thunderbolt Dock’s SD card reader. You can also use the reader like an external drive to store or backup files at will with 312MB/s of speed at your fingertips.

Get Wired

Nothing can put you behind schedule like slow, low-quality Wi-Fi. Don’t settle for a sub-par connection. Plug your wired network into the OWC Thunderbolt Dock’s Gigabit Ethernet port for uninterrupted downloads, fast and reliable file transfers, secure network access, and increased productivity. The OWC Thunderbolt Dock’s IP-based connection facilitates collaboration on big team projects without worrying about your Wi-Fi connection.

A Higher Vision

The OWC Thunderbolt Dock’s technology empowers you to connect a single 5K/6K/8K display or up to two 4K displays. Enjoy more precise and vivid details in graphic-intensive CAD drawings. Attend a video meeting on one screen while editing content on another. Take your Adobe Photoshop or Affinity Photo images up a notch. Edit large format video on one display, while previewing the raw playback on the other. Whatever your workstation display needs, the OWC Thunderbolt Dock gives you the vision to take it to the next level.

Mac

The OWC Thunderbolt Dock works with any Mac with an available Thunderbolt 3 port running macOS 11.1 Big Sur. Need a Thunderbolt dock that works with older versions of macOS? Check out our selection of award-winning Thunderbolt 3 docks.

Windows PC

The OWC Thunderbolt Dock works with any Windows PC with an available Thunderbolt 4 port. Need a dock for PC without Thunderbolt 4? Rest assured this connectivity wonder stands ready for duty as a USB-C dock. Check out all of our award-winning Thunderbolt and USB-C docks.

A Resolutionary Idea

Whether your computer or tablet is sporting the latest technology or is a few years loved, the OWC Thunderbolt Dock gives you multiple options to expand your visual horizons:

Single and Dual Display Support

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Apple silicon Mac (M1, M2)3

Apple silicon Mac (M1 Pro, M1 Max, M1 Ultra, M2 Pro, M2 Max)3

Intel Mac with Thunderbolt 33

see note 1

see note 2

Apple silicon Mac (M1, M2)3

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Apple silicon Mac (M1 Pro, M1 Max, M1 Ultra, M2 Pro, M2 Max)3

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

iPad Pro or iPad Air with Thunderbolt4

iPad Pro with USB-C4

iPad Air with USB-C4

Intel Mac with Thunderbolt 33

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

see note 1

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

see note 2

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Chromebook

iPad Pro or iPad Air with Thunderbolt4

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

iPad Pro with USB-C4

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 6K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

8K @ 60HZ

iPad Air with USB-C4

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Chromebook

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 6K @ 60HZ

(Apple Studio Display)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Windows PC with Thunderbolt 4

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Windows PC with Thunderbolt 3 / USB45

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Windows PC with 10Gb/s USB-C (with DisplayPort)

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Windows PC with 5Gb/s USB-C (with DisplayPort)

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

DUAL 5K @ 60HZ

(Apple Studio Display)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Windows Tablet

4K @ 30HZ

4K @ 60HZ

DUAL 4K @ 60HZ

5K @ 60HZ

(Apple Studio Display or LG Ultrafine 5K)

6K @ 60HZ

(Apple Pro XDR)

DUAL 6K @ 60HZ

Apple Pro XDR

8K @ 60HZ

Windows PC with Thunderbolt 4

Windows PC with Thunderbolt 3 / USB45

Windows PC with 10Gb/s USB-C (with DisplayPort)

Windows PC with 5Gb/s USB-C (with DisplayPort)

Windows Tablet

3. OWC highly recommends that you verify the display support for your specific Mac model:

4. OWC highly recommends that you verify the display support for your specific iPad model:

5. OWC recommends that you verify the display support for your PC's Thunderbolt port. Some refresh rates require DisplayPort 1.4 HBR3 and DSC 1.2 support from the display and the host. Not all Thunderbolt ports support DisplayPort 1.4 – some are limited to DisplayPort 1.2, which may reduce refresh rate or resolution support.

Powerful Freedom

With 96 watts of charging power, you can do it all simultaneously: keep your notebook ready for mobile use, power/charge devices, and free up a Thunderbolt port on your machine. Ready to take a break or done for the day? The OWC Thunderbolt Dock will continue to power and/or charge connected computers and devices.

Disconnect in One Click

Safely disconnect multiple drives in a single click. OWC Dock Ejector was designed by OWC hardware and software engineers to ensure all data is written before disconnection, saving time and protecting against data loss. It makes losing your hard-earned work a thing of the past.

Apple SuperDrive Ready

OWC's free Dock Ejector software also includes a special driver that enables your OWC Thunderbolt Go Dock to play and burn CDs and DVDs with the Apple SuperDrive. Just connect the SuperDrive to an open USB-A port on the OWC Thunderbolt Dock for bus power to watch a DVD movie, listen to music CDs, create a backup disk, and install software.

OWC Thunderbolt Cable Included

OWC Thunderbolt Go Dock comes with a certified 0.7M OWC Thunderbolt Cable. But if your workflow demands a different length to make the connection, OWC Thunderbolt (USB-C) Cables are the perfect choice.

Stabilize Thunderbolt and USB-C Cables

Active workspaces expose gear to bumps, shoves, or even the random tail wag from a pet. OWC ClingOn custom cable stabilisers (sold separately) screw into the OWC Dock or OWC Drive housing to reduce – if not completely eliminate – cable strain on Thunderbolt and USB-C connections so you can work with confidence even in the highest foot traffic environments.

OWC, Trusted by Pros & Enthusiasts the World Over

We build our hardware to the highest standards of reliability and performance. Because 100% reliability is always the goal, we rigorously quality test and back our hardware with a 2 Year OWC / Ramcity Limited Warranty and award-winning customer support.

Includes

  • (1) Thunderbolt 4 (USB-C) with up to 90W computer power delivery
  • (3) Thunderbolt 4 (USB-C)
  • (3) USB 3 Type-A (10Gb/s)
  • (1) USB 2.0 Type-A with high-power charging (BC 1.2)
  • (1) Combo audio in/out jack
  • (1) Gigabit Ethernet
  • 2 Year OWC Limited Warranty

Detailed Specs

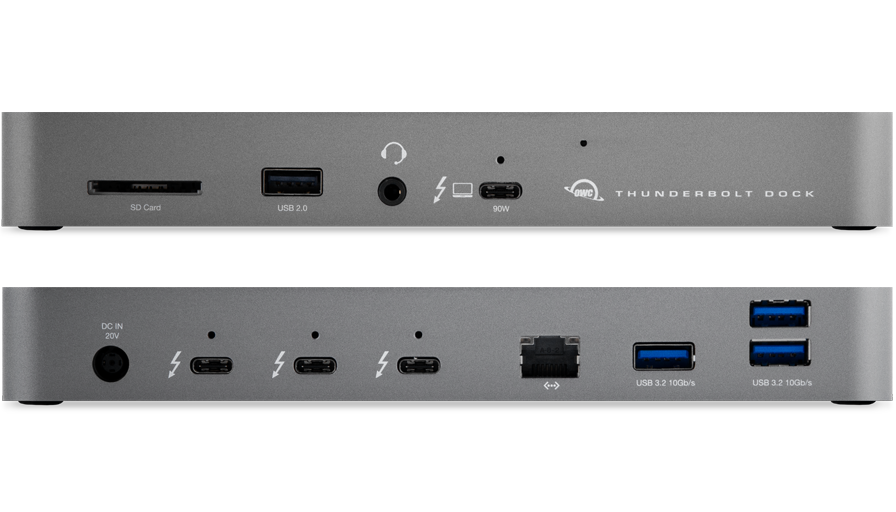

Device Ports

  • (1) Host Port - Thunderbolt 4 (USB-C) up to 40 Gb/s (5000 MB/s)
  • (3) Thunderbolt 4 (USB-C) Ports
  • (3) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
  • (1) USB 2.0 Port
  • (1) Gigabit Ethernet (GbE) RJ-45 Port
  • (1) 3.5mm Stereo Audio Input/Output Combo Port
  • Memory Card Slots

    • (1) Secure Digital (SD)

    Power Delivery

    • Thunderbolt 4 host port provides up to 96W of power to the host computer.
    • Thunderbolt 4 device ports (for external drives and other devices) provide 15W of power.
    • USB port provides up to 1.5A of power for bus-powered drives and device charging.

    Display Support

    • Up to one 8K display @ 60Hz
    • or two 4K displays @ 60Hz,
    • or one 4K display @ 120Hz,
    • or one 4K display @ 60Hz,
    • or two 5K displays @ 60Hz

    Display Support by Port

    • Thunderbolt 4: Up to 8K @ 60Hz or 4K @ 120Hz via a native Thunderbolt 4 display or other display that supports USB-C connections and DisplayPort 1.4

    Ethernet Speeds (RJ-45)

    • 10Mb/s (10BASE-T)
    • 100Mb/s (100BASE-T)
    • 10Mb/s (10BASE-T)

    Data Rate

    • Up to 40Gb/s

    Host Port Requirements

    • Thunderbolt (USB-C) or USB (USB-C or USB-A1) port

Mac OS Compatibility

  • macOS 11.x Big Sur
  • macOS 12.x Monterey
  • macOS 13.x Ventura
  • PC OS Compatibility

    • Windows 11
    • Windows 10 64-bit Edition

    Mobile OS Compatibility

    • iPadOS 16
    • iPadOS 15
    • iPadOS 14
    • iPadOS 13
    • Android 13.x
    • Android 12.x
    • Android 11.x

    Other OS Compatibility

    • Chrome OS

    External Power Adapter

    • Yes

    Power Supply

    • External UL-listed universal auto- switching power supply
    • Need an additional power supply? Secondary/replacement power supplies are also available.

    AC Input

    • 100-240V, 50-60Hz, 2.5A

    DC Output

    • +20V, 6.75A

    Wattage

    • 135W

    Replacement Adapter Part Number

    • OWCPWR20V150W (sold separately)

    Security Slot

    • Yes

    External Power Adapter

    • Yes

Housing Color

  • Chassis: Space Gray
  • Covers: Black
  • Housing Material

    • Chassis: Aluminum
    • Covers: Polycarbonate

    Dimensions

    • Height: 2.6 cm (1.0 in)
    • Length: 7.3 cm (2.9 in)
    • Width: 19.8 cm (7.8 in)

    Weight

    • 400.0 g (0.88 lbs)

    Certifications

    • BSMI
    • CE
    • FCC
    • RCM
    • VCCI

    RoHS Compliant

    • Yes

    Reach Certification

    • Yes

    Ambient Temperature

    • Operating: 32°F to 86°F (0°C to 30°C)
    • Non-Operating: -4°F to 140°F (-20°C to 60°C)

    Humidity

    • Operating: 5% to 95% non-condensing
    • Non-Operating: 5% to 95% non-condensing

Thunderbolt and the Thunderbolt logo are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries.

  • Thunderbolt 4 host port provides up to 96W of power to the host computer. Thunderbolt 4 ports for device/drive connection provide up to 15W of power. USB ports provide up to 1.5A of power for bus-powered drives and device charging.
  • Actual display support varies by computer specifications. Supported Intel-based Apple Mac models and Thunderbolt 4 PCs support two displays over a Thunderbolt port. Apple M1 Mac models support a single display over a Thunderbolt port.
  • Supported on all M1 Mac models and Thunderbolt 3 equipped Mac models running macOS 11.1 Big Sur or later. Supported on Windows PCs with Thunderbolt 4 ports.
