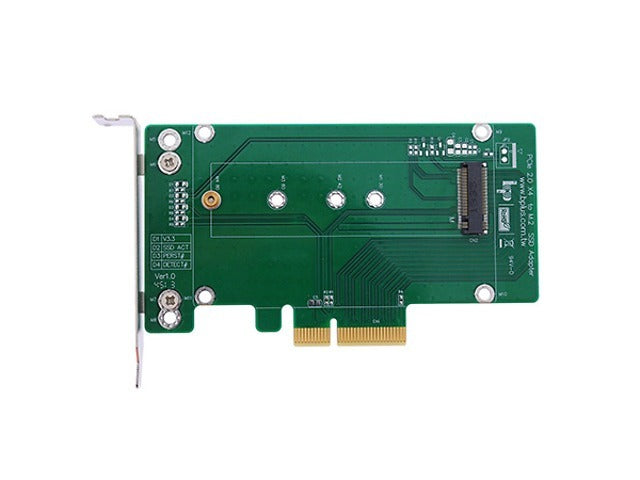

Bplus M.2 PCIe SSD to PCIe 3.0 x4 adapter
Made by the experts at Bplus Technology in Taiwan, the Bplus M.2 PCIe SSD to PCIe 3.0 x4 adapter allows you to install a single super high-speed M.2 (NGFF) PCIe 2.0/3.0 x4 Solid State Drive into a standard desktop pc via a spare PCIE slot. Note, if you are looking to install two PCIe M.2 drives in the same card, then the dual-drive version might suit you better.

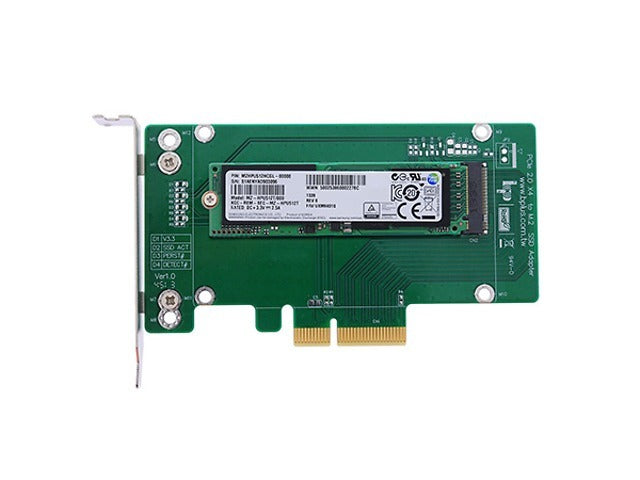

Note, this adapter is designed only for 'M' key M.2 PCIe x4 SSD's (pictured below left), such as the Samsung XP941 and SM951. It will not work with a 'B' key M.2 PCIe x2 SSD or the 'B' key M.2 SATA SSD. For the 'B' key M.2 SATA SSD's you will need the Bplus Dual M.2 (NGFF) SSD to SATA adapter.
A small amount of assembly is required to attach the included bracket to the adapter card. Screws are included.
Features:
- Easily installs into any PCIe 2.0/3.0 x4, x8, or x16 slot in your PC
- Transparent to the operating system
- Requires no software driver installation
Specifications:
- M.2 specification revision 0.9
- Supports 2230 / 2242 / 2260 / 2280 / 22110 type M.2 card form factors
- Supports M.2 'Socket 3' PCIe based SSD module
- Supports M.2 Key M card type

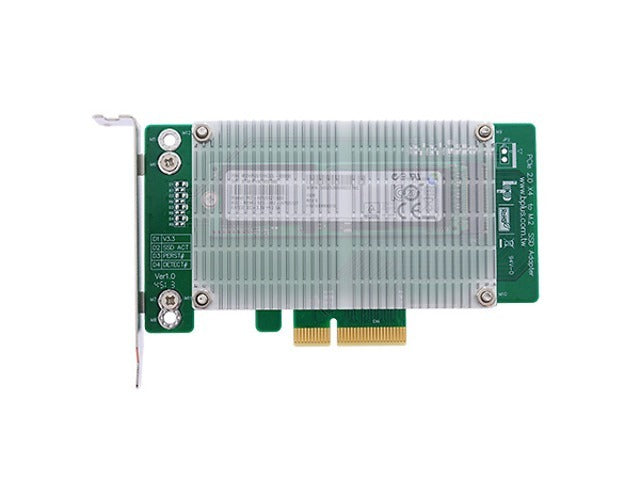

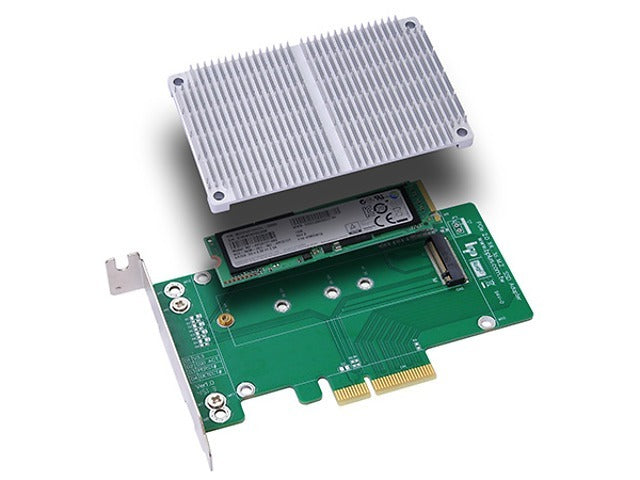

- Includes a 92x57x8mm heat sink for additional passive cooling
- *NOTE* System boot from this adapter card has limited support on Windows and Linux systems in UEFI mode. Many X99 based motherboards will support it. Booting IS supported on 2006-2012 model Mac Pro (cMP) computers (all those up to, but not including, the newest 'tube' model)
Package Contents:
- M.2 PCIe 2.0/3.0 x4 SSD to PCIe x4 adapter card
- Standard height PCIe bracket
- Flat head screws x1 (for securing M.2 SSD to the card)
| M.2 SSD to PCI-E Adapter Compatibility List | ||||||
| M.2 SSD Brand / Model | Interface | Size | M2P4A | M2PS | ||
| Samsung XP941 MZHPU128HCGM-00000 |
PCIe key M | 2280 |  |
|||
| Samsung XP941 MZHPU256HCGL-00000 |
PCIe key M | 2280 | |
|||
| Samsung XP941 MZHPU512HCGL-00000 |
PCIe key M | 2280 | |
|||
| Samsung M.2 128G MZ-NPD1280 |
SATA key B / M | 2280 | |
|||
| Samsung M.2 128G MZNTD128HAGM |
SATA key B / M | 2280 | |
|||
| BPLUS M2EM | SATA key B / M | 2242 | |
|||
| ADATA AXNS341N-64GM-B | SATA key B / M | 2242 | |
|||
| Sandisk X110 | SATA key B / M | 2242 | |
|||
| Samsung MZNTD128HAGM | SATA key B / M | 2280 | |
|||
| Intel SSD Pro 1500 Series | SATA key B / M | 2280 2242 |
|
|||
| Intel SSD 530 Series | SATA key B / M | 2280 | |
|||
| Toshiba THNSNHGDNT | SATA key B / M | 2280 | |
|||
| LITE-ON L8T-128L6G-HP | SATA key B / M | 2280 | |
|||
|
||||||
