StarTech M.2 to SATA SSD adapter - expansion slot mounted
StarTech M.2 to SATA SSD adapter - expansion slot mounted
- Add SSD performance to any desktop computer system by converting M.2 to SATA
- Wide installation compatibility with the included low-profile, and full-profile expansion slot brackets
- Supports the most common M.2 SATA drives (2230, 2242, 2260, 2280)
- Condition: New
- Warranty: 2 Yrs

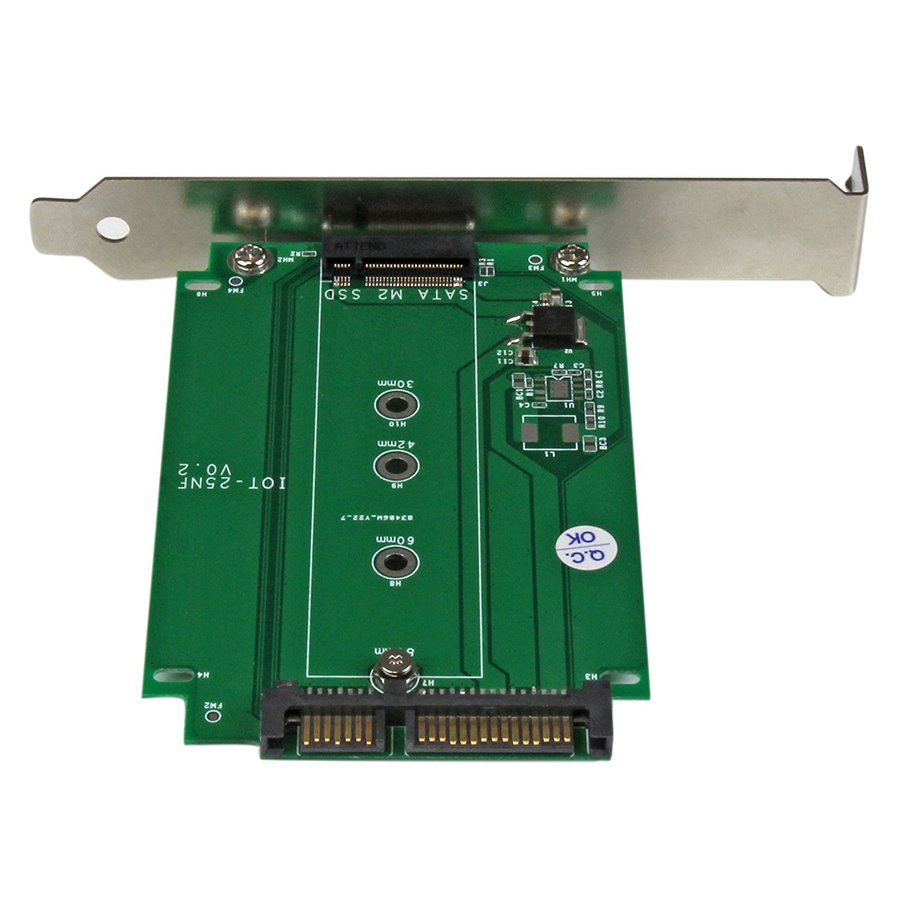

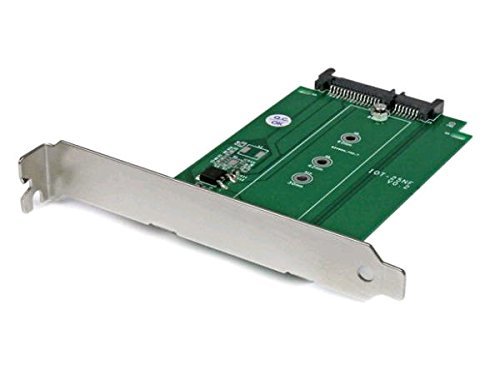

Mount a M.2 SATA Solid State Drive into your desktop computer, using a standard SATA host connection
Add SSD performance to any desktop computer system by converting M.2 to SATA
Wide installation compatibility with support for the most common M.2 SATA SSDs (2230, 2242, 2260, 2280)
Add SSD performance to any desktop computer system by converting M.2 to SATA
Now, you can greatly increase the performance of your desktop computer by replacing your platter drive with a fast M.2 SATA solid state drive. By installing your primary operating system on the M.2 SSD drive and using your higher-capacity platter HDD for bulk storage, you can harness the speedy performance of the M.2 drive for frequently accessed data while storing files you access less often on your platter drive.

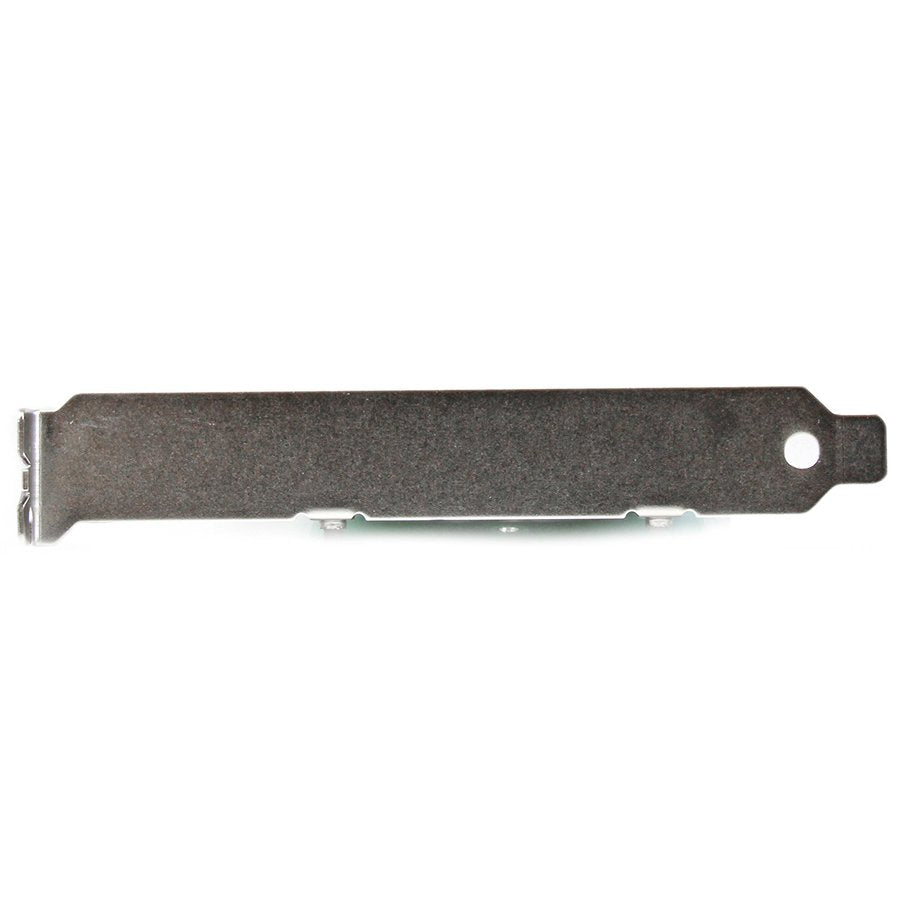

Wide installation compatibility with the included low-profile, and full-profile expansion slot brackets
For a hassle-free installation, the adapter mounts into any new or legacy desktop expansion slot, with support for AGP, PCI, and PCIe slots. The adapter also includes full-profile and low-profile brackets, ensuring compatibility with both full-sized and small form factor desktops.
Applications
- Connect an unused M.2 drive to your computer system using an available expansion slot.
- Install your primary operating system on a new M.2 SATA SSD, and keep your larger standard HDD in the same system for bulk storage.
- Recover data from an M.2 drive by connecting it to a standard SATA computer system
- Clone your existing SSD to a new M.2 SATA SSD using software before upgrading. Macrium Reflect has free versions for cloning and partition resizing.
Compatible with:
- The enclosure is compatible with all standard M.2 SATA SSDs, and enables you to mount multiple drive lengths, including: 30mm (2230), 42mm (2242), 60mm (2260), and 80mm (2280).
NOT Compatible with:
- PCIe M.2 SSD's, such as the Samsung 960 Evo/Pro, SM961, MyDigitalSSD BPX
- SATA or PCIe SSD's pulled from Mac Computers. To find enclosures for your Mac SSD, look up your model here

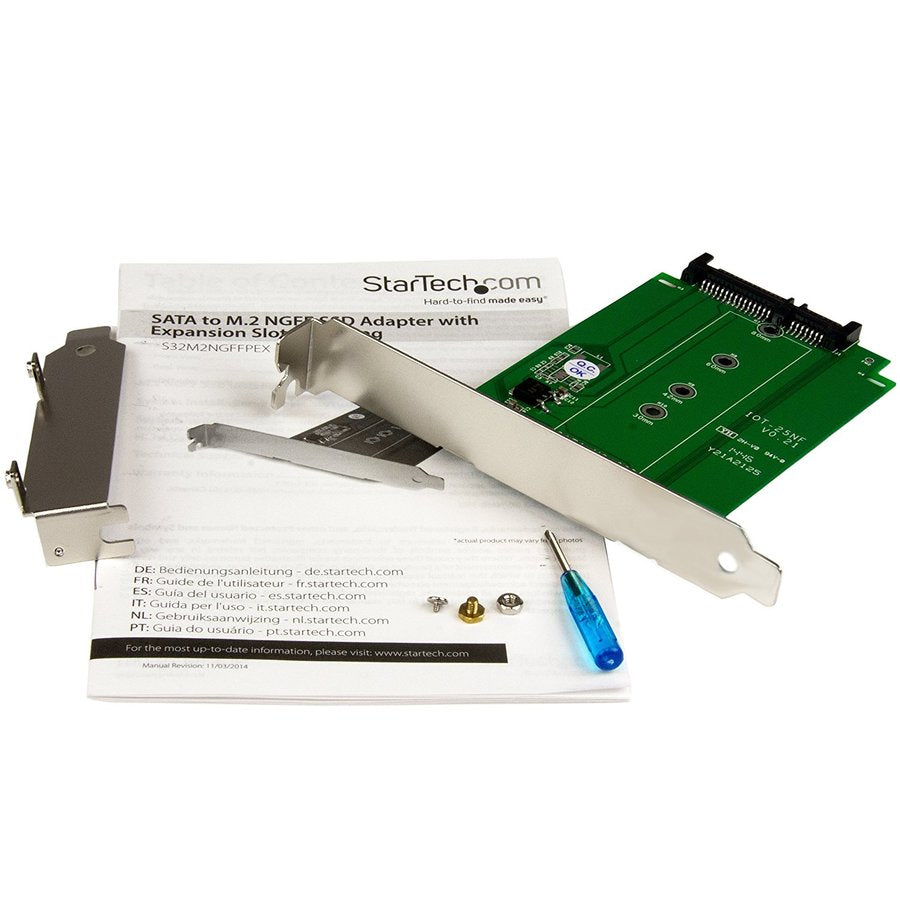

What's in the box
- 1x SATA to M.2 NGFF SSD Adapter
- 1x Full profile bracket (pre-installed)
- 1x Low profile bracket
- 1x SSD installation screw
- 1x Screw driver
- 2x Standoffs (for PCI slot installation)
You might also need..
This requires that you connect SATA data and power to the ports on the card.
- Spare SATA power and data cables can be found here.
