IOCREST U.2 (SFF-8639) to Mini-SAS (SFF-8643) 90cm Cable with 15-pin SATA power for 2.5" PCIe NVMe SSD
IOCREST U.2 (SFF-8639) to Mini-SAS (SFF-8643) 90cm Cable with 15-pin SATA power for 2.5" PCIe NVMe SSD
- Form Factor: Cable
- Warranty: 1 Yr
- Condition: New
This well manufactured cable is for interfacing a 2.5 inch U.2 SSD (such as the Intel 750 series or Samsung PM963/SM963/PM1725a with a PCIe NVMe 3.0 x4 interface to a motherboard with a HD-Mini SAS (SFF-8643) port. Just mount your 2.5-inch SSD in the case, connect the U.2 (SFF-8639) connector to the U.2 port on the drive, the SFF-8643 connector to the Mini-SAS port on the motherboard, and the SATA power connector to a spare SATA power cable . Braid net tubing provides protection for the cable, while the 90cm length provides sufficient reach to place the SSD at various locations in the case.
*Important* - your motherboard needs a U.2 port to work with this cable
If your system does not have a HD-mini-SAS SFF-8643 (U.2) port then you may instead need a U.2 SFF-8639 to PCI-e 3.0 x4 Adapter Card with cable (requires a free PCIe port). Or if you have a free 'M' key M.2 socket, use a U.2 (SFF-8639) to M.2 M-Key NVMe Adapter card with cable.
Features

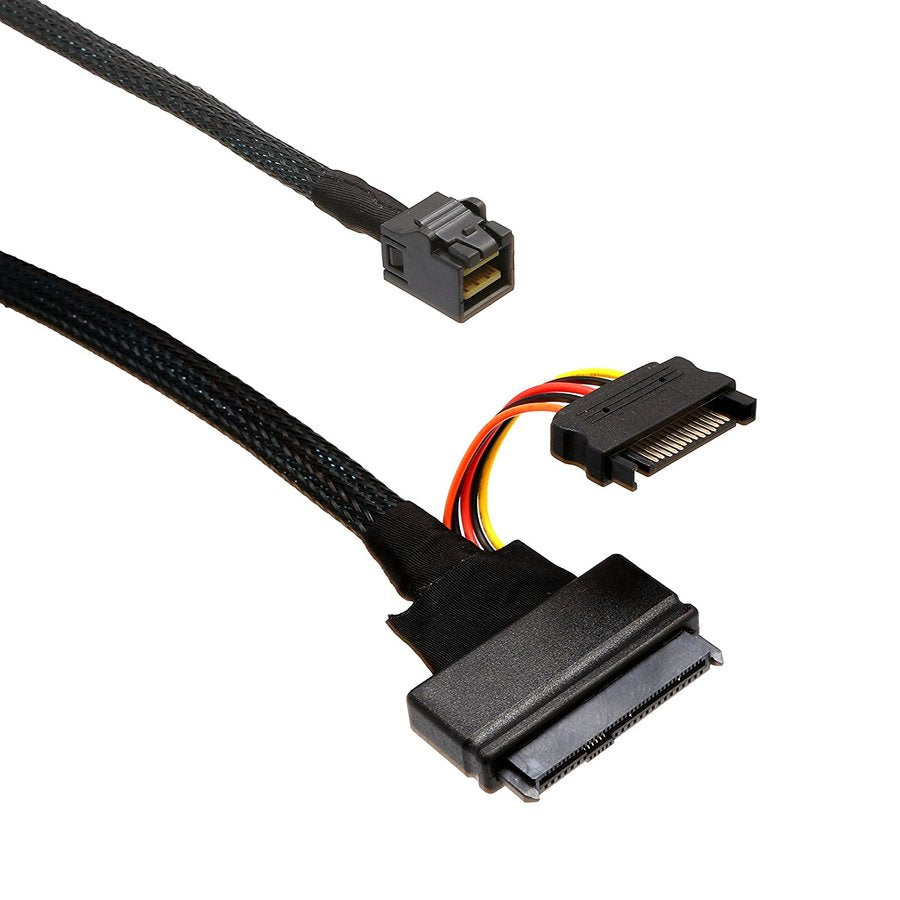

- U.2 (SFF-8639) 68-pin to HD Mini-SAS (SFF-8643) 36-pin cable

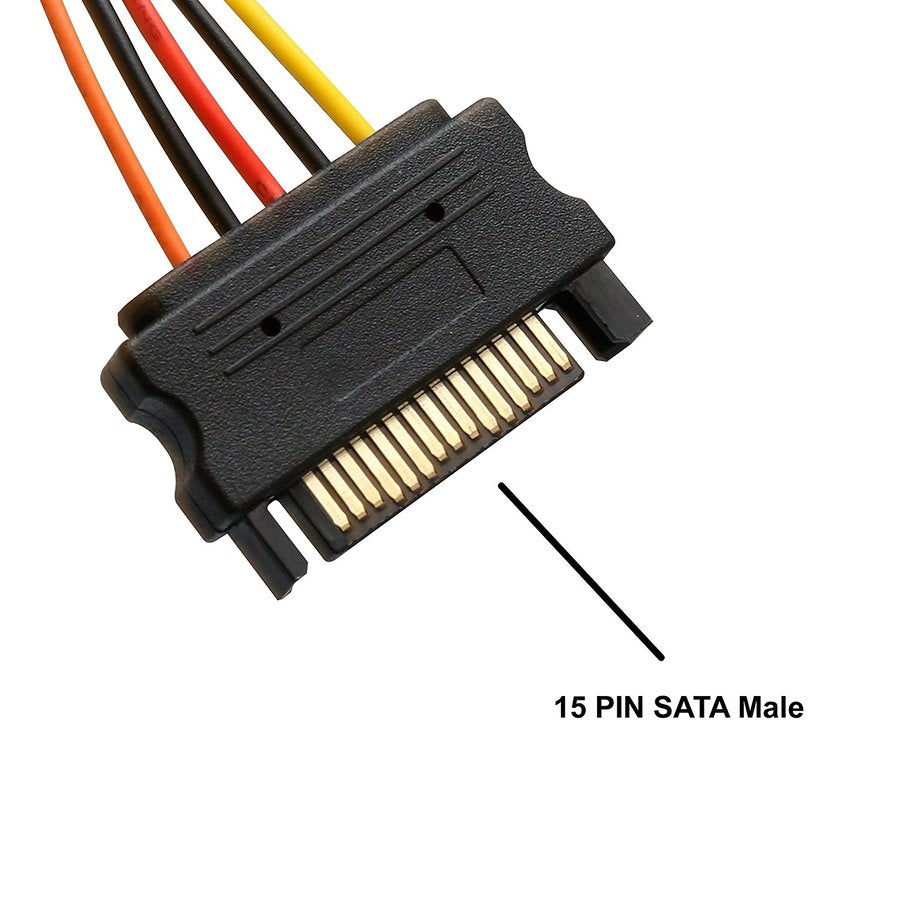

- Includes 15-pin SATA power connector
- Designed for 2.5" SSDs with a U.2 port
- Supports up to PCIe 3.0 x4 speeds

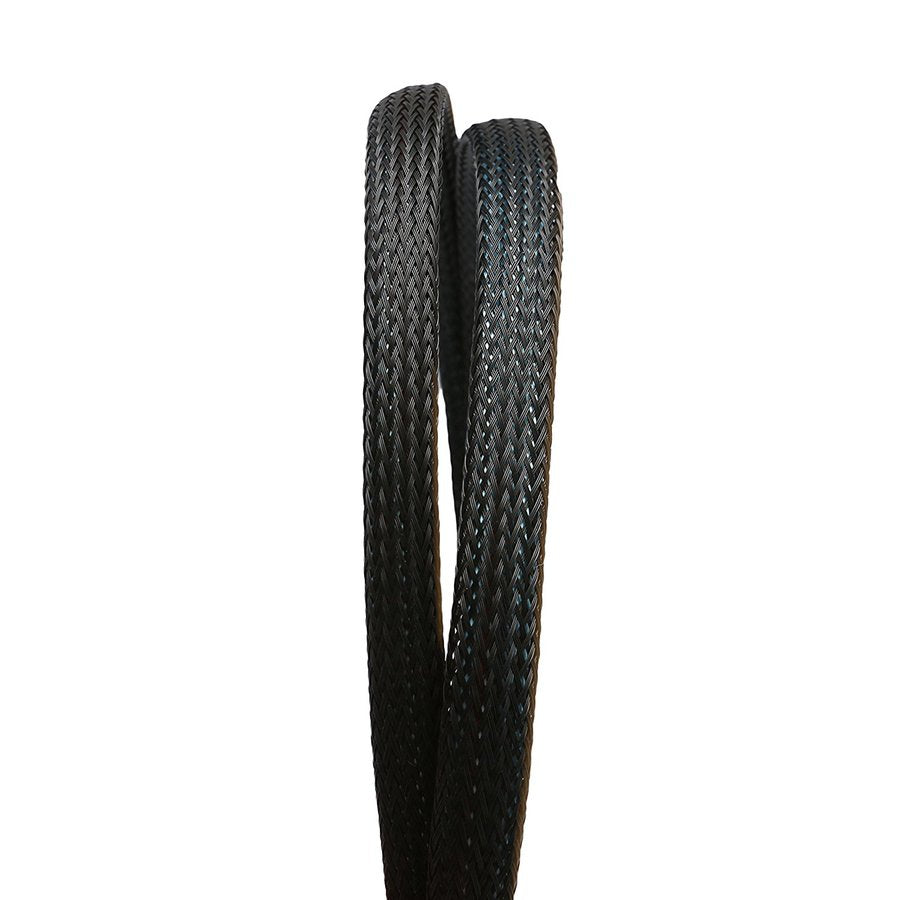

- Braid net tubing provides cable protection
- 90 cm length
Compatibility
- Works with any 2.5-inch HDD/SSD with a PCIe U.2 interface port
- Supports motherboards with an integrated U.2 HD Mini-SAS (SF8643) port, such as ASUS ROG Maximus VIII Impact or ASUS Maximus VIII Hero Alpha
- Compatible with ASRock U.2 Add-On card, Gigabyte M.2 to U.2-Mini-SAS Add-In Card, ASUS Accessory Hyper Kit
You might also need:
- 2.5"-3.5" drive bracket (to mount a 2.5" SSD in a standard 3.5" drive bay)
- molex to dual SATA power cable (if you only have free molex power connectors)
