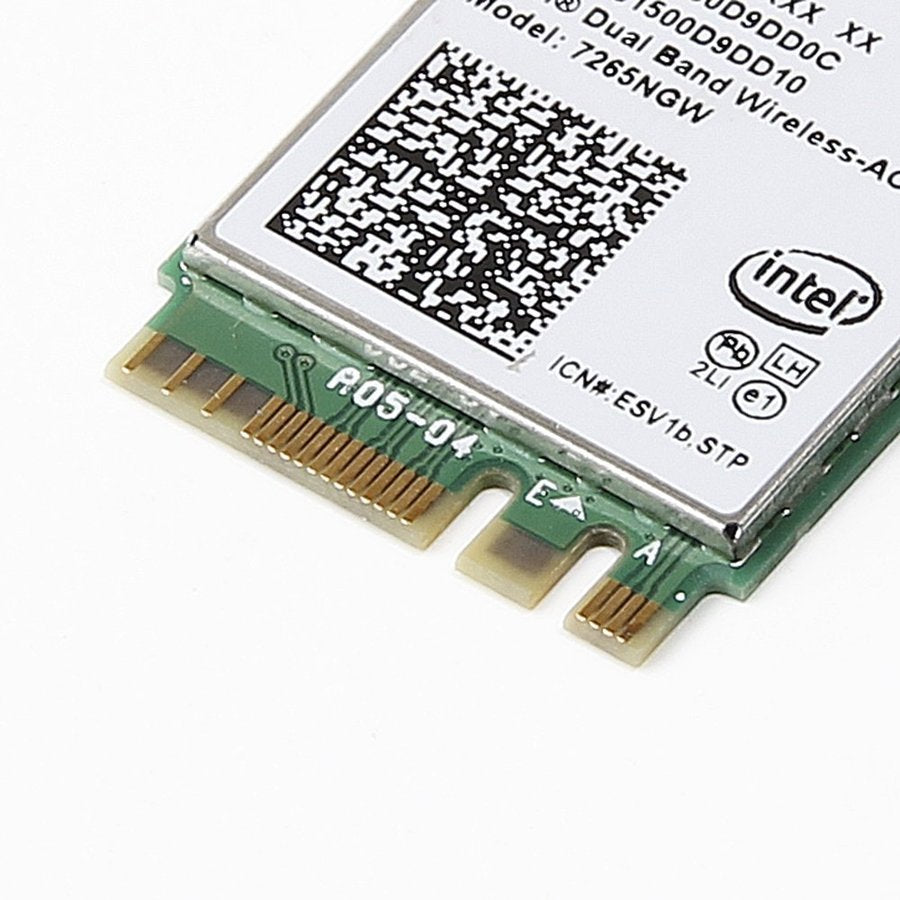

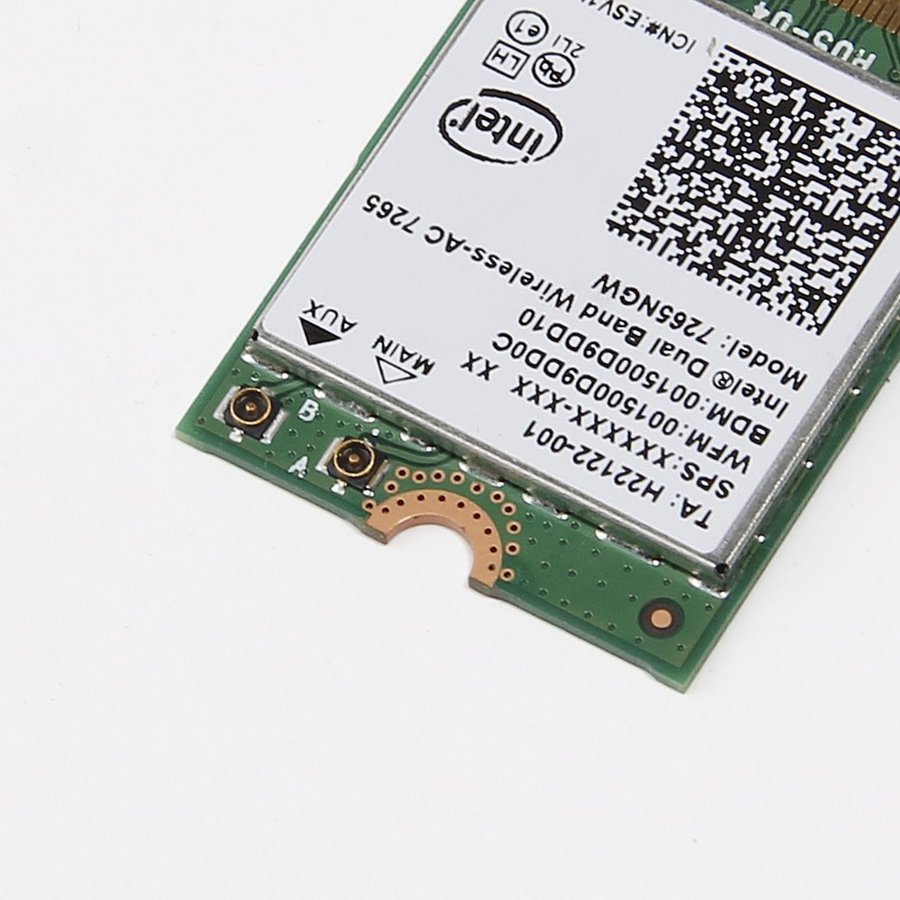

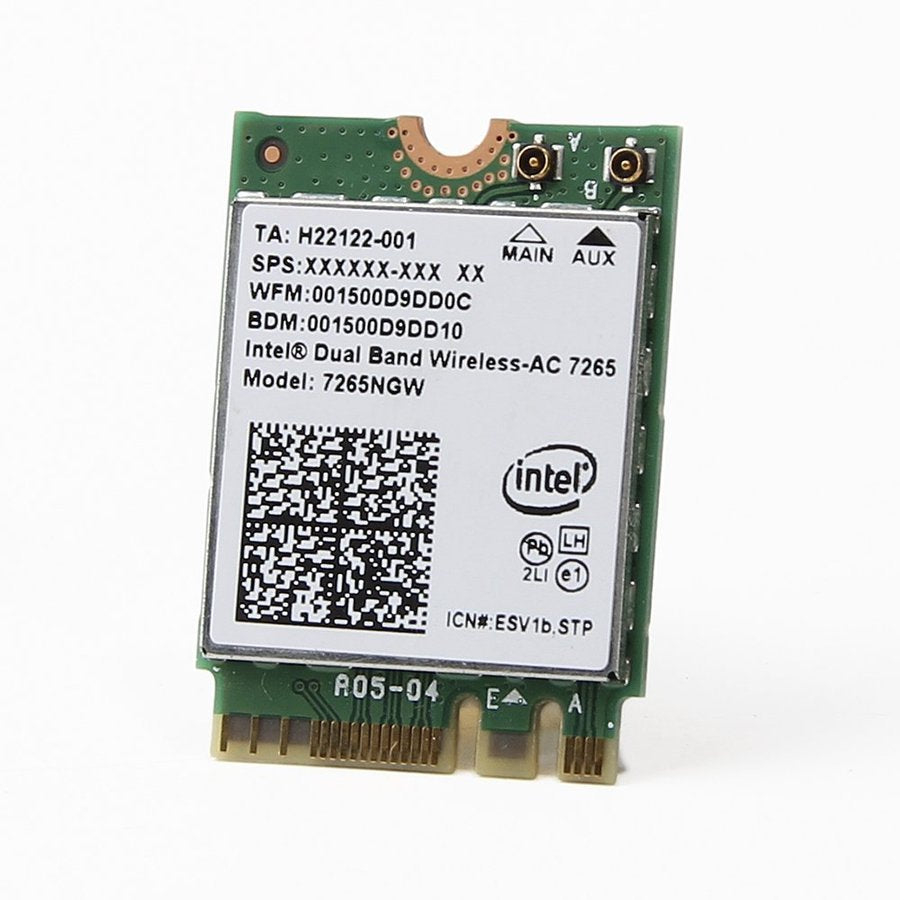

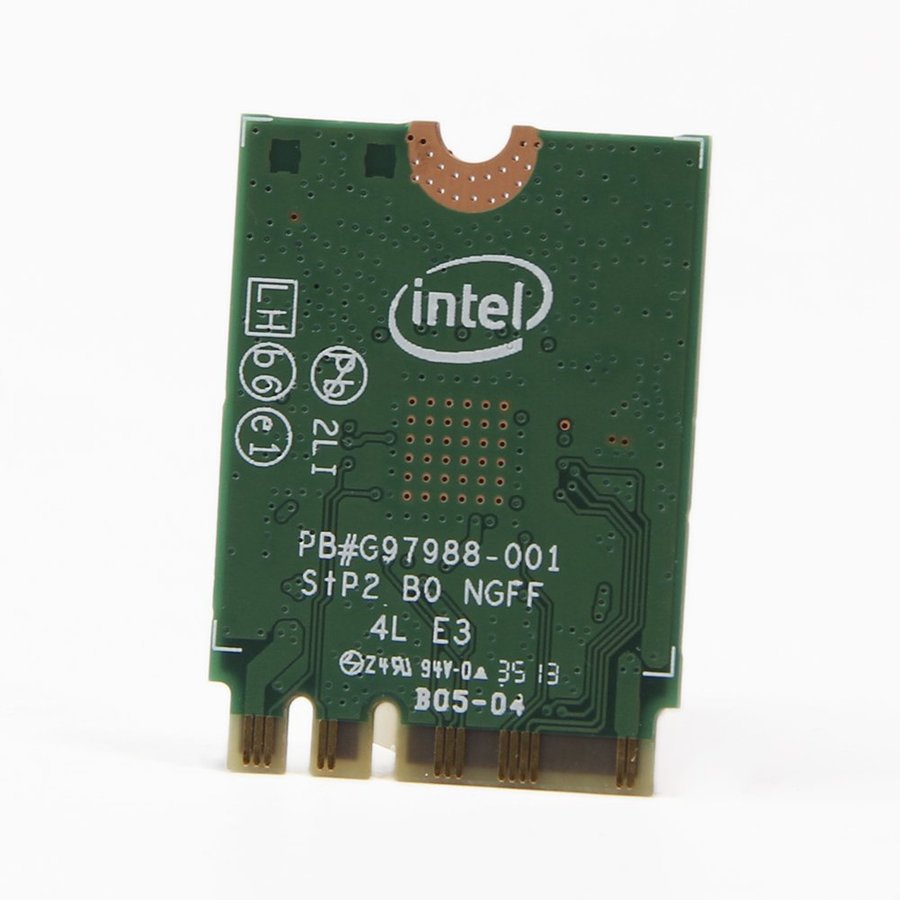

Intel M.2 (2230) Dual Band Wireless-AC 7265 802.11ac Dual Band 2x2 Wi-Fi + Bluetooth 4.0
Ideal for
- New generation ultrabooks, and laptops with a compatible M.2 socket
What's in the package
- Wireless adapter in OEM packaging (plain, but packed safely for transit)
You might also need....
- It's recommended you download the latest Intel Proset Wireless drivers which contain the most compatible Wi-Fi and Bluetooth stack you'll need.
- A screwdriver kit - as some laptops have small Torx and/or Phillips screws securing the case and the existing wireless adapater.
Compatibility
- Drivers are available for Windows 7/8/8.1 operating systems. With other operating systems, your mileage may vary.
Download the latest Intel driver software
Please Note - The 7265NGWR is not currently compatible with the Lenovo Yoga 2 Pro
|
Intel® Dual Band Wireless-AC 7265 Technical Specifications |
|
|---|---|
| Dimensions (H x W x D) | M.2: 22 mm x 30.00 mm x 2.4 mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side) |
| Weight | 2.4gm |
| Diversity | Supported |
| Radio ON/OFF Control | Supported in both hardware and software |
| Connector interface | M.2: PCIe, USB |
| LED Output | On/Off |
| Operating Temperature (Adapter Shield) | 0º to +80°C |
| Humidity Non-Operating | 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C) |
| Operating Systems | Microsoft Windows 7*, Microsoft Windows 8*, Linux* (most features not available on Linux) |
| Wi-Fi Alliance | Wi-Fi CERTIFIED* for 802.11ac, Wi-Fi CERTIFIED* a/b/g, Wi-Fi CERTIFIED* n, WMM*, WPA*, WPA2*, and WPS, WPS 2.0, Protected Management Frames, Wi-Fi Direct* for peer to peer device connections Wi-Fi Miracast Source |
| Architecture | Infrastructure and SoftAP; Supports simultaneous Client and SoftAP modes |
| IEEE WLAN Standard | IEEE 802.11abgn, 802.11ac, 802.11d, 802.11e, 802.11i, 802.11h, 802.11w |
| Roaming | Supports seamless roaming between respective access points (802.11b, 802.11g, 802.11a/b/g, 802.11a/b/g/n, and 802.11ac) |
| Bluetooth | Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0 (BLE) |
| Authentication | WPA and WPA2, 802.1X (EAP-TLS, TTLS, PEAP, LEAP, EAP-FAST), EAP-SIM, EAP-AKA |
| Authentication Protocols | PAP, CHAP, TLS, GTC, MS-CHAP*, MS-CHAPv2 |
| Encryption | 64-bit and 128-bit WEP, AES-CCMP, TKIP |
| Wi-Fi Direct | Encryption and Authentication WPA2, AES-CCMP |
| Product Safety | UL, C-UL, CB (IEC 60950-1) |
| Management Frame Protection | 802.11w (WFA- Protected Management Frames) |
