Lycom PCIe to USB 3.1 2 Port (2x USB-C) Expansion Card

SKU: UB-135

  • $49.99
    Unit price per
GST included. Shipping calculated at checkout.

Only 0 left!
0 in Stock
Will be in stock after

Lycom PCIe to USB 3.1 2 Port (2x USB-C) Expansion Card

Lycom PCIe to USB 3.1 2 Port (2x USB-C) Expansion Card
Key Specifications

  • Form Factor: Half-height, Half-length (HHHL)
  • Warranty: 1 Yr
  • Condition: New

This handy USB 3.1 expansion card delivers USB 3.1 Gen 2 speeds with a bit rate of up to 10Gbps which is 20X faster than USB 2.0 and 12X faster than FireWire. Compatible with both older and newer USB 3.1 technology, this card includes 2x USB-C ports, and is backwards compatible so you can connect your USB 3.0 or USB 2.0 devices if desired. (You'll typically need a USB-A to ASB-C adapter as well for older devices if they use a standard USB-A cable)

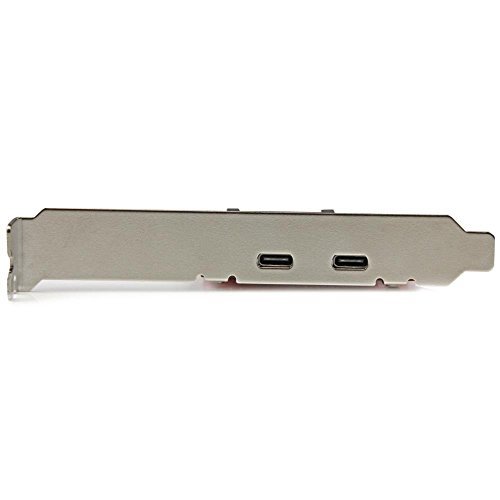

Out of the box it has a regular PCI bracket (attached) and an optional low profile bracket for installation into all types of computers that have an available PCIe slot. Compliant with USB 3.1 Specification Revision 1.0. . NOTE: The ASMedia chipset used in this board is NOT compatible with Mac OS 10.11 (El Capitan), but works fine with earlier or later versions of OSX.

  • USB3.1 PCIe x4 Lane Host Adapter supports PCIe Gen2 x2 or PCIe Gen3 x1
  • Two USB 3.1 Type C downstream receptacle ports
  • Provides 5V3A USB bus power each USB 3.1 Type C port
  • Supports PCIe 1.0 and PCIe 2.0 and PCIe 3.0 motherboard
  • Compliant with Universal Serial Bus 3.1 Specification Revision 1.0
  • Compliant with Intel eXtensible Host Controller Interface (xHCI) Specification 1.0
  • Compliant with USB Attached SCSI Protocol Specification 1.0
  • All USB ports can handle SuperSpeed+ (10 Gbps), SuperSpeed (5 Gbps), HighSpeed (480 Mbps), FullSpeed (12 Mbps), and LowSpeed (1.5 Mbps) transaction
  • Support USB3.1, USB3.0, USB2.0 and USB1.1 devices
  • Compliant with PCI Express Specification 3.0
  • Low Profile PCIe Form Factor
  • Regular size PCIe bracket on board and Low Profile PCIe Bracket included
  • USB 5V bus power automatically from PCIe bus or from 15Pin SATA power connector when 15Pin cable 12V power in
  • Require an empty PCIe 2.0 or PCIe 3.0 x4 or x8 or x16 slot in computer for USB3.1 full performance
  • Compatible with MacOS 10.8 to 10.10, (not 10.11.x) MacOS 10.12 and higher, Windows 10, Win8, 8.1, Server 2012, Linux kernel 2.6.31 using the native driver. UASP supported with no additional driver required
  • Official Asmedia 64bit and 32bit Windows 7, Vista, XP and 64bit 2008 R2 driver can be downloaded from here
  • *Note*: MacOS 10.11.x (El Capitan) native driver does not support USB3.1
  • Fully RoHS compliant
