Intel Compute Card BLKCD1C64GK Mini PC Celeron N3450 2.2GHz 4GGB DDR3 64GB SSD DP HDMI 2xDisplays WiFi BT for digital signage kiosks smart TVs 3yrs wt
Intel Compute Card BLKCD1C64GK Mini PC Celeron N3450 2.2GHz 4GGB DDR3 64GB SSD DP HDMI 2xDisplays WiFi BT for digital signage kiosks smart TVs 3yrs wt
Intel Compute Card BLKCD1C64GK Celeron N3450 2.2GHz 4GGB DDR3 64GB SSD DP HDMI 2xDisplays WiFi BT for digital signage kiosks smart TVs

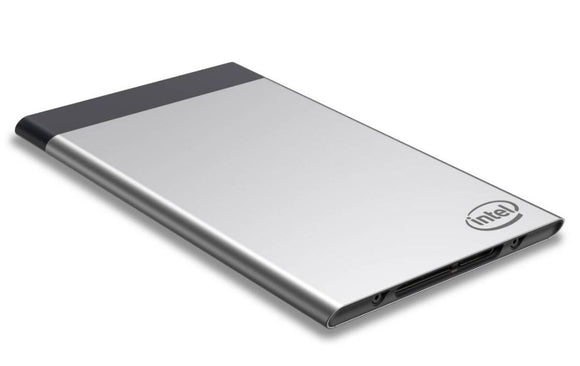

Intel® Compute Card is just slightly longer than a credit card, but it’s ready to power anything from entry-level to full featured devices. The modularity and flexibility of this computer on a card allows compute integration via card slot into devices like digital signage, kiosks, smart TVs, appliances and more.
Compute Card Features
Connect How You Want
Includes built-in integrated Wi-Fi and Bluetooth® wireless connectivity.
The Ideal Processors
Equipped with a range of processors, including 7th Gen Intel® Core™ vPro™ processor, to handle the toughest computing needs.
Secure Docking
Whether embedded inside the device or designed to be end-user accessible, the compute card remains secure via both hardware and software
Technical Specifications
Essentials
Warranty Period 3
Status Launched
Socket Compute Card
Embedded Storage 64
Pre-Installed Operating System None
DC Input Voltage Supported 12V +/- 5%
Launch Date Q3'17
Supplemental Information
Memory Specifications
Max Memory Size (dependent on memory type) 4 GB
ECC Memory Supported ‡ No
Max # of Memory Channels 2
Pre-Installed Memory Yes
Memory Types LPDDR3 1866 MHz
Graphics Specifications
Graphics Output DisplayPort 1.2 and HDMI 1.4b via DDI
# of Displays Supported ‡ 2
Integrated Graphics ‡ Yes
Integrated Wifi Intel® Dual Band Wireless-AC 7265
Integrated Bluetooth Yes
Audio (back channel + front channel) Digital Display Interface
Package Specifications
Low Halogen Options Available No
Advanced Technologies
Intel® vPro Technology ‡ No
TPM 1.00
Intel® Remote Wake Technology Yes
Intel® Virtualization Technology (VT-x) ‡ Yes
Intel® Platform Trust Technology (Intel® PTT) 1.00
Intel® HD Audio Technology Yes
Security & Reliability
Trusted Execution Technology ‡ No
