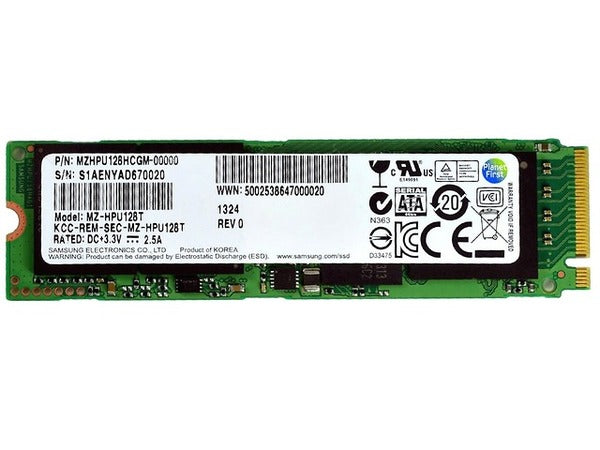

Samsung XP941 128GB AHCI M.2 PCIe 2.0 x4 80mm (2280) Internal SSD - OEM

Apple

Mac Pro 2006-2012 (pre-cylindrical) models (must be installed in an adapter)

ASRock

X99 Extreme 6 Motherboard X99 Extreme 4 Motherboard X99 WS Motherboard Fatal1ty X99M Killer Motherboard Z97 Extreme 9 Motherboard Z97 Extreme 6 Motherboard

ASUS

G751 JY Notebook X99 Deluxe Motherboard X99 Pro Motherboard X99-E WS Motherboard X99 Rampage V Extreme Motherboard Z97 Maximus Hero VII Motherboard Z97 Maximus VII Impact Motherboard Z97 Maximus VII Ranger Motherboard Z97-A Motherboard Z97 Deluxe Motherboard Z97 Sabertooth Mk II Motherboard Z97 WS Motherboard H97I-Plus Motherboard

Clevo

P650SE Notebook

Dell

Alienware 17 Notebook XPS 13 (2015 Edition) Notebook

EVGA

X99 Classified Motherboard

Gigabyte

GA-X99-UD4 Motherboard GA-Z97X-UD5H Motherboard

Intel

NUC5i5RYK NUC5i3RYH

Lenovo

X1 Carbon G3 Notebook

MSI

Z97 XPOWER AC Motherboard Z97M Gaming Motherboard

SONY

VAIO Pro 13 Notebook

Data Throughput Rates

Throughput rates are provided in the table below. See the performance notes regarding slower PCIe 2.0 x2 and PCIe 1.0 slots



XP941 Throughput Comparison Chart	PC	Mac	Mac	Mac
	Windows/Linux Desktops ***	2009-2012 Mac Pro	2008 Mac Pro	2006-2007 Mac Pro
Compatible M.2 to PCIe adapter cards	Lycom DT-120	Lycom DT-120	Lycom DT-120	Lycom DT-120
Max Sequential Read	512GB: 1170MB/s 256GB: 1080MB/s 128GB: 1000MB/s	512GB: 1170MB/s 256GB: 1080MB/s 128GB: 1000MB/s	512GB: 1170MB/s * 256GB: 1080MB/s * 128GB: 1000MB/s *	512GB: 720MB/s ** 256GB: 720MB/s ** 128GB: 720MB/s **
Max Sequential Write	512GB: 950MB/s 256GB: 800MB/s 128GB: 450MB/s	512GB: 950MB/s 256GB: 800MB/s 128GB: 450MB/s	512GB: 950MB/s * 256GB: 800MB/s * 128GB: 450MB/s *	512GB: 580MB/s ** 256GB: 580MB/s ** 128GB: 450MB/s **
Random read speed (4 KB blocks)	512GB: 122,000 IOPS 256GB: 120,000 IOPS 128GB: 110,000 IOPS	512GB: 122,000 IOPS 256GB: 120,000 IOPS 128GB: 110,000 IOPS	512GB: 122,000 IOPS * 256GB: 120,000 IOPS * 128GB: 110,000 IOPS *	512GB: 122,000 IOPS ** 256GB: 120,000 IOPS ** 128GB: 110,000 IOPS **
Random write speed (4 KB blocks)	512GB: 72,000 IOPS 256GB: 60,000 IOPS 128GB: 40,000 IOPS	512GB: 72,000 IOPS 256GB: 60,000 IOPS 128GB: 40,000 IOPS	512GB: 72,000 IOPS * 256GB: 60,000 IOPS * 128GB: 40,000 IOPS *	512GB: 72,000 IOPS ** 256GB: 60,000 IOPS ** 128GB: 40,000 IOPS **
Bootable	Yes (Z97, X99), others No	Yes	Yes	Yes

* To achieve maximum throughput in the 2008 Mac Pro, one or two of the PCIe 2.0 x16 slots must be used. These models have two x16 PCIe 2.0 slots and two x4 PCIe 1.0 slots. The latter PCIe 1.0 slots will only allow up to 585-753MB/s data transfer rates.

** From the review at barefeats.com: "Using the 'Expansion Slot Utility' in the System/Library/CoreServices folder, we reconfigured the PCIe slot speeds to various combinations of 4, 8, and 16 lane slots to benchmark the XP941. The transfer speeds above were achieved using the 4 lane slots. The 8 lane and 16 lane slots did not produce any faster transfer speeds. On other other hand, if you use a 1 lane slot, the transfer speeds drop to 200MB/s READ and 170MB/s WRITE. We tested with both OS X Leopard and Snow Leopard. OS X Tiger kernel panicked at startup. Though we didn't try it, it should also work with OS X Lion, the last Mac OS to be officially supported on the 2006 Mac Pro."

*** To achieve the listed throughput rates on a PC/Workstations/Server platform, a PCIe 2.0 x4 or higher slot is required (e.g. PCIe 2.0 x8 or PCIe 2.0 x16). PCIe 1.0 slots may provide lower performance, depending on the number of PCIe lanes allocated to the slot.



---
