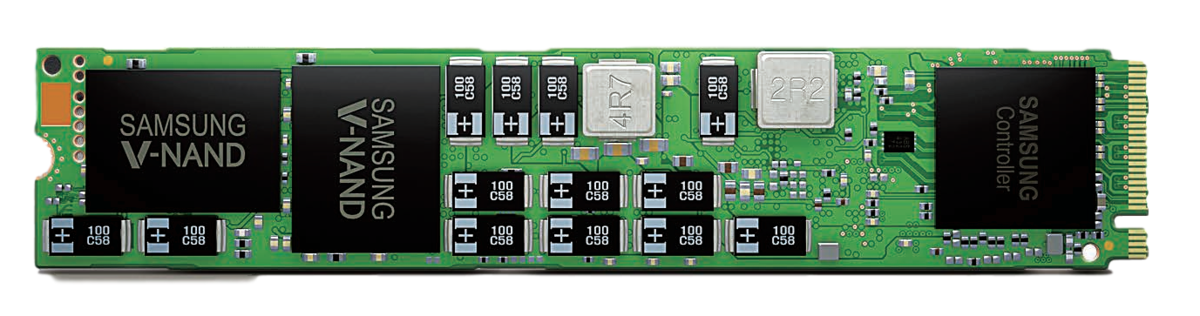

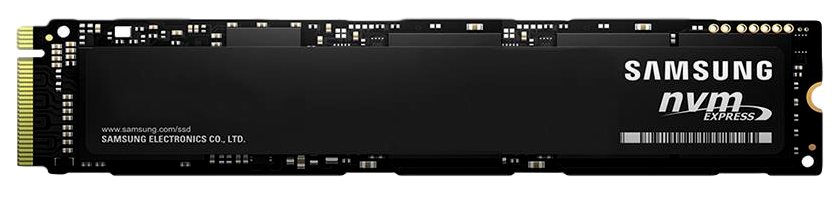

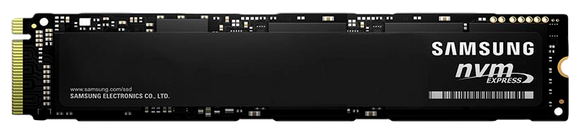

Samsung SM963 1.92TB NVMe M.2 PCIe 3.0 x4 110mm (22110) Internal SSD - OEM

SKU: MZ1KW1T9HMLS-00003

  • $2,707.99
    Unit price per
GST included. Shipping calculated at checkout.

Only 0 left!
0 in Stock
Will be in stock after

Extreme Performance in any Scenario

Advanced Performance and Endurance

Extreme Performance and Endurance

Samsung PM1725a
2.5-inch PCIe U.2
Samsung PM1725a
PCIe HHHL AIC
Samsung PM963
M.2 PCIe (NVMe)
Samsung PM963
2.5-inch PCIe U.2
Samsung SM963
M.2 PCIe (NVMe)
Samsung SM963
2.5-inch PCIe U.2
Ideal For
Read Intensive Datacenter Applications
Outstanding Mixed Workload Performance for Datacentres
Perfect for Write-Intensive Workloads
Form Factor
2.5-inch 15mm PCIe U.2 (dual-port)
PCIe HHHL AIC
M.2 22110 (110mm)
2.5-inch 7mm PCIe U.2 (single-port)
M.2 22110 (110mm)
2.5-inch 7mm PCIe U.2 (single-port)
Sequential Read (128KB)
Up to 3300MB/s
Up to 6300MB/s
960GB: 1900MB/s
1.92TB: 2000MB/s
3.84TB: 2000MB/s
480GB: 1200 MB/s
960GB: 2000MB/s
1.92TB: 2100MB/s
3.84TB: 2100MB/s
Sequential Write (128KB)
800GB: 1000MB/s
1.6TB: 2200MB/s
3.2TB: 2600MB/s
6.4TB: 2600MB/s
1.6TB: 2100MB/s
3.2TB: 2600MB/s
6.4TB: 2600MB/s
960GB: 930MB/s
1.92TB: 1200MB/s
3.84TB: 1200MB/s
480GB: 900 MB/s
960GB: 1400MB/s
1.92TB: 1400MB/s
3.84TB: 1400MB/s
Random Read IOPS (4KB, QD32)
800GB: 700K
1.6TB: 750K
3.2TB: 800K
6.4TB: 800K
Up to 1080K
960GB: 380K
1.92TB: 450K
3.84TB: 450K
480GB: 350K
960GB: 430K
1.92TB: 430K
3.84TB: 430K
Random Write IOPS (4KB, QD32)
800GB: 70K
1.6TB: 130K
3.2TB: 160K
6.4TB: 160K
1.6TB: 140K
3.2TB: 170K
6.4TB: 170K
960GB: 31K
1.92TB: 40K
3.84TB: 40K
480GB: 23K
960GB: 33K
1.92TB: 40K
3.84TB: 40K
Capacity
800GB
1.6TB
3.2TB
6.4TB 1.6TB
3.2TB
6.4TB 960GB
1.92TB 960GB
1.92TB
3.84TB 480GB
960GB
1.92TB 480GB
960GB
1.92TB
3.84TB
Interface
PCIe 3.0 x4, NVMe 1.2
PCIe 3.0 x8, NVMe 1.2
PCIe 3.0 x4, NVMe 1.2
PCIe 3.0 x4, NVMe 1.2
NAND
Samsung 3-bit MLC V-NAND Samsung 3-bit MLC V-NAND Samsung 48-layer 3D TLC NAND Samsung 48-layer 3D MLC NAND Samsung 48-layer 3D TLC NAND Samsung 48-layer 3D MLC NAND
Controller
Samsung Epic
Samsung Epic
Samsung Polaris
Samsung Polaris
Active Power Consumption
23W 23W 8W 8W
Idle Power Consumption
7.7W 7.7W 2.5W 2.5W
Devslp / L1.2 Power Consumption
Trim Support
S.M.A.R.T Support
GC (Garbage Collection)
AES 256-bit encryption
TCG Opal 2.0 compliant
Adaptive Thermal Protection Power loss protection
Reliability (MTBF)
2 Million Hours 2 Million Hours 2 Million Hours
Limited warranty
5-year*** 3-year*** 5-year***
Endurance / TBW (Terabytes Written)
800GB: 7.3PBW (4TB/day)
1.6TB: 14.6PBW (8TB/day)
3.2TB: 29.2PBW (16TB/day)
6.4TB: 58.4PBW (32TB/day) 960GB: 1366TBW (1.3TB/day)
1.92TB: 2733TBW (2.6TB/day) 480GB: 3153TBW (1.7TB/day)
960GB: 6307TBW (3.4TB/day)
1.92TB: 12614TBW (6.9TB/day)

*** The limited warranty assumes that the total bytes written (TBW) does not exceed the specification of the SSD. (calculated based on host writes and on the industry standard of 3 months data retention). Workloads that results in TBW exceeding the specification are not covered under warranty. We'd like to see you doing a workload that exceeds what these SSD's can do!


Samsung Electronics

Samsung Electronics Co., Ltd. is a South Korean multinational electronics company headquartered in Suwon, South Korea. It is the flagship subsidiary of the Samsung Group, amounting to 70% of the group's revenue in 2012, and has been the world's largest information technology company by revenues since 2009. Samsung Electronics has assembly plants and sales networks in 80 countries and employs around 370,000 people.

In July 2017, Samsung Electronics overtook Intel as the largest semiconductor chip maker in the world.
