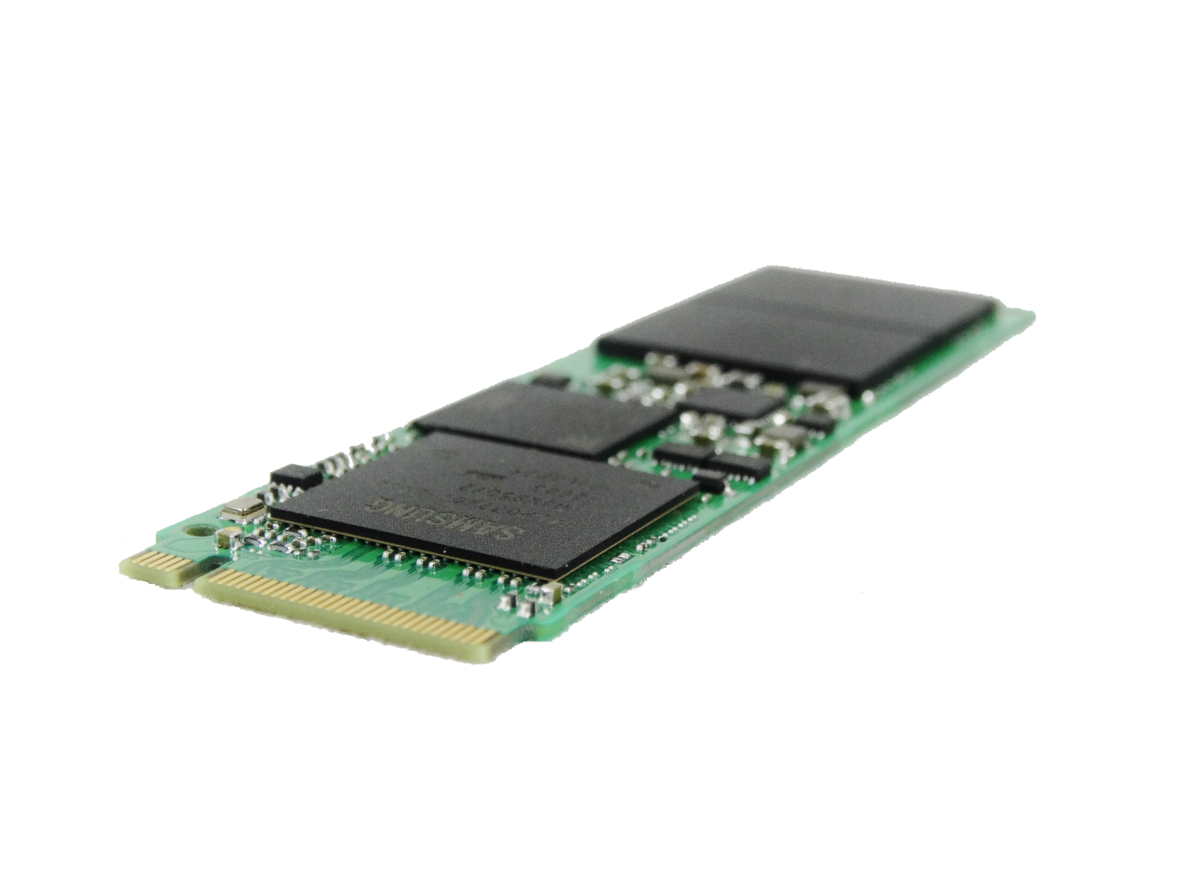

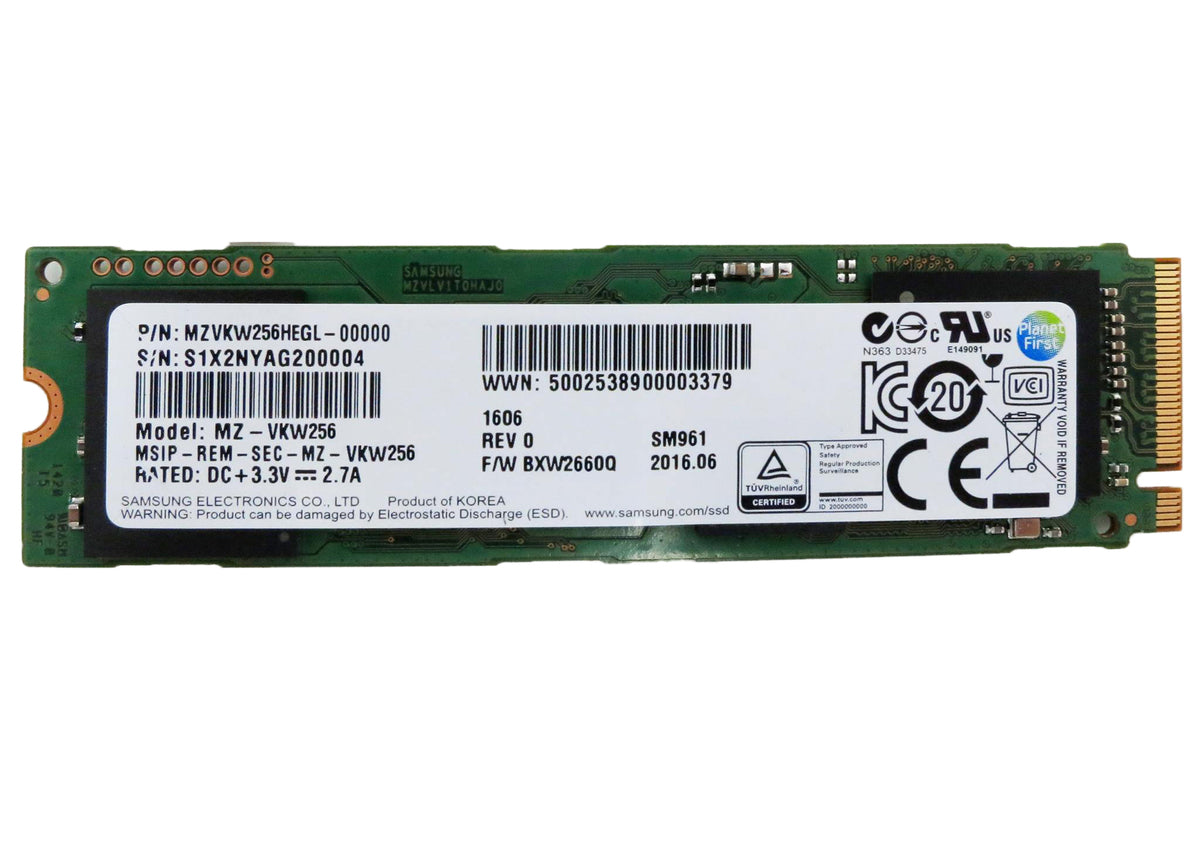

Samsung SM961 256GB NVMe M.2 PCIe 3.0 x4 80mm (2280) Internal SSD - OEM

SKU: MZVPW256HEGL-00000

  • $1,109.98
    Unit price per
GST included. Shipping calculated at checkout.

Only 0 left!
0 in Stock
Will be in stock after

Legacy Performance and AHCI Compatibility

Highest AHCI performance

Good NVMe Performance

Cost Effective Performance and Endurance

Superior Performance and Endurance

Samsung XP941
M.2 PCIe (AHCI)
Samsung SM951
M.2 PCIe (AHCI)
Samsung SM951
M.2 PCIe (NVMe)
Samsung PM961
M.2 PCIe (NVMe)
Samsung SM961
M.2 PCIe (NVMe)
Ideal For
Legacy notebooks, pre-X99 systems, cMP Mac Pro (requires adapter)
Legacy notebooks, pre-X99 systems, cMP Mac Pro (requires adapter)
M.2 NVMe compatible systems
Gaming Rigs and High End PC's
Gaming Rigs and High Performance Workstations
Form Factor
M.2 2280 (80mm)
M.2 2280 (80mm)
M.2 2280 (80mm)
M.2 2280 (80mm)
M.2 2280 (80mm)
Sequential Read (128KB)
128GB: 1000MB/s
256GB: 1080MB/s
512GB: 1170MB/s
128GB: 2000MB/s
256GB: 2150MB/s
512GB: 2150MB/s
128GB: 2000MB/s
256GB: 2150MB/s
512GB: 2150MB/s
256/512GB: 2000MB/s
1TB: 3000MB/s
256/512GB: 3100MB/s
1TB: 3200MB/s
Sequential Write (128KB)
128GB: 450MB/s
256GB: 800MB/s
512GB: 950MB/s
128GB: 600MB/s
256GB: 1200MB/s
512GB: 1500MB/s
128GB: 650MB/s
256GB: 1260MB/s
512GB: 1550MB/s
256GB: 1100MB/s
512GB: 1600MB/s
1TB: 1700MB/s
256GB: 1400MB/s
512GB: 1700MB/s
1TB: 1800MB/s
Random Read IOPS (4KB, QD32)
128GB: 110K
256GB: 120K
512GB: 122K
90K
up to 300K
256GB: 250K
512GB: 260K
1TB: 360K
256GB: 3300K
512GB: 330K
1TB: 430K
Random Write IOPS (4KB, QD32)
128GB: 40K
256GB: 60K
512GB: 72K
70K
128GB: 83K
256/512GB: 100K
256GB: 180K
512GB: 260K
1TB: 330K
256GB: 280K
512GB: 300K
1TB: 320K
Capacity
128GB/256GB/512GB 256GB/256GB/512GB 256GB/512GB 256GB/512GB/1TB 256GB/512GB/1TB
Interface
PCIe 2.0 x4, AHCI
PCIe 3.0 x4, AHCI
PCIe 3.0 x4, NVMe 1.1a
PCIe 3.0 x4, NVMe 1.2
PCIe 3.0 x4, NVMe 1.2
NAND
Samsung 10nm Class MLC NAND Samsung 10nm Class MLC NAND Samsung 10nm Class MLC NAND Samsung 48 layer TLC 3D V-NAND Samsung 48 layer TLC 3D V-NAND
Controller
Samsung UAX
Samsung UBX
Samsung UBX
Samsung Polaris
Samsung Polaris
Active Power Consumption
5.8W 6.5W 6.5W 6.1W 5.9W
Idle Power Consumption
80mA 50mA 50mA 45mA 100mA
Devslp / L1.2 Power Consumption
2mA 2mA 5mA 5mA
Trim Support
S.M.A.R.T Support
GC (Garbage Collection)
AES 256-bit encryption
TCG Opal 2.0 compliant
Adaptive Thermal Protection Power loss protection
Reliability (MTBF)
1.5 Million Hours 1.5 Million Hours 1.5 Million Hours 1.5 Million Hours
Limited warranty
2-year** 2-year** 3-year*** 3-year***
Endurance / TBW (Terabytes Written)
Not published, recommended for consumer use only Not published, uses very high endurance 48-layer 3D TLC NAND

** Warranty is provided by RamCity for 2 years on open-box / reconditioned items
*** Warranty is provided by RamCity for 3 years on OEM M.2 SSD's
